Things to buy
This page is in Transition. Parts lists will be shown in separate tables by devices. Additional tables will appear as completed. Some part numbers may be invalid over time. Part numbers are only suggestions and references for future research.
Main Base Purchased Parts Required:
| ITEM | QTY | NOTES |
|---|---|---|
| 608ZZ Ball Bearings | 24+ | 16 additional for each additional format that you’ll be scanning. |
| Longboard Wheel | 1 | 65mm High, 75mm Diameter, 8mm Inner shaft, 73a Hardness. |
| Rods - 4mm X 150mm (6”) | 1 | Rod should be strong and smooth (Polished Stainless Steel for example). Amazon B082ZNJ1DH |
| Rod – 8mm (0.315 inch) diameter, 15cm length (6 inches) | 11 | Rod should be strong and smooth (Polished Stainless Steel for example). Amazon B07XP4H2K5 |
| Rod – 8mm (0.315 inch) diameter, 20cm length (8 inches) | 1 | Rod should be strong and smooth (Polished Stainless Steel for example). Amazon B082ZMGJ9B |
| F684ZZ Mini Ball Bearings Double Shielded Flanged Ball Bearings for 3D Printer Model 4x9x4mm | 1 | Amazon - B07CKLBBXX |
| 4mm to 5mm Brass Shaft Coupling Joint Connector | 1 | Amazon - B0C1RD6KFY |
| Nema17, 12v, 1.8 degrees/step, stepper motor (42X42X34) | 1 | Bi Polar – 4-Wire. Must have a D-Cut in shaft! |
| LED ENG NW 3LEDS 4200K | 6 | Digikey 1647-1030-1-ND |
| Sensor Optical 15mm Module | 2 | Digikey Z3028-ND |
| Connector HSG 3 Pos 2.50mm | 2 | Digikey A112637-ND |
| Connector Pin 20-26AWG Crimp Tin | 6 | Digikey A100469CT-ND (Get Extras) |
| Housings Receptacle White 0.098“ (2.50mm) | 3 | Digikey 455-2267-ND |
| Pre-Crimped Wires | 10 | Digikey 455-3241-ND (Get extras “in case”) |
| APT, UHMW (Ultra-high Molecular Weight) Polyethylene Tape (2” x 5Yds, 5 Mil UHMW) | 1 | Amazon - B08CFVTX7T |
| 26 Gauge Stranded Wire - Yellow & Black | 36” Each | Amazon - B073QJZ3PD |
| 22 Gauge Stranded Wire - Black | 60” | Can be longer depending on the distance to your Circuit board. |
| 22 Gauge Stranded Wire – Red | 60” | Can be longer depending on the distance to your Circuit board. |
| 22 Gauge Stranded Wire – Green | 48” | Can be longer depending on the distance to your Circuit board. |
| 22 Gauge Stranded Wire – Blue | 48” | Can be longer depending on the distance to your Circuit board. |
| 22 Gauge Stranded Wire – Brown (or another color beside Red or Black) | 48” | Can be longer depending on the distance from the Gate to the Circuit board. |
| Small Wire Ties | Many | For holding wires together. |
| Rubber Bands | Various | Get good quality rubber bands and a variety of sizes. |
| Matte Archival Polyester Film | 1 Pad | Grafix Matte 0.005 Dura-Lar Film - P05DM0912 |
Turntables Purchased Parts Required:
| ITEM | QTY | NOTES |
|---|---|---|
| 608ZZ Ball Bearings | 4 | |
| Rod – 8mm (0.315 inch) diameter, 15cm length (6 inches) | 2 | Rod should be strong and smooth (Polished Stainless Steel for example). Amazon B07XP4H2K5 |
| #6 x 3/4” nuts and bolts. | 4 | Hardware Store |
| #6 x 1/2” nuts and bolts. | 6 | Hardware Store |
| Nema17, 12v, 1.8 degrees/step, stepper motor (42X42X34) | 2 | Bi Polar – 4-Wire. Must have a D-Cut in shaft! |
| Pre-Crimped Wires | 8 | Digikey 455-3241-ND (Get extras “in case”) |
| Housings Receptacle White 0.098“ (2.50mm) | 2 | Digikey 455-2267-ND |
| Small Wire Ties | Many | For holding wires together. |
Legacy Page Below:
(still missing a few things, a 2 pins plugs, a lot of #6 screws and nuts, 2 lightpipes and some 12v backlight del strips)

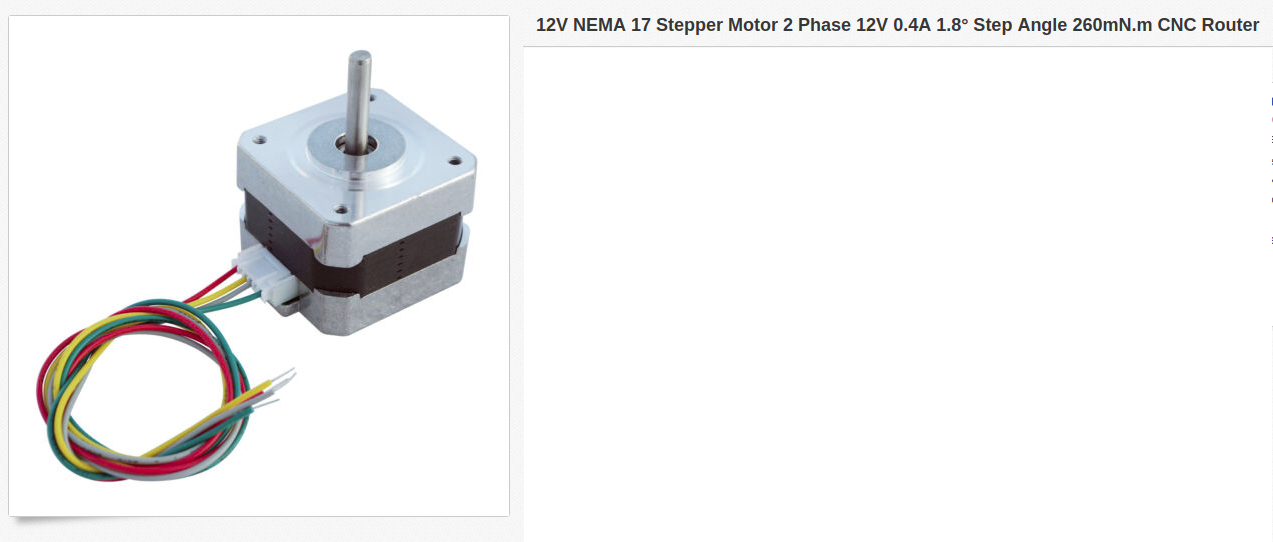

stepper motors, quantity: 3
Search for: Nema17, 12v, 1.8 degrees/step, stepper motor

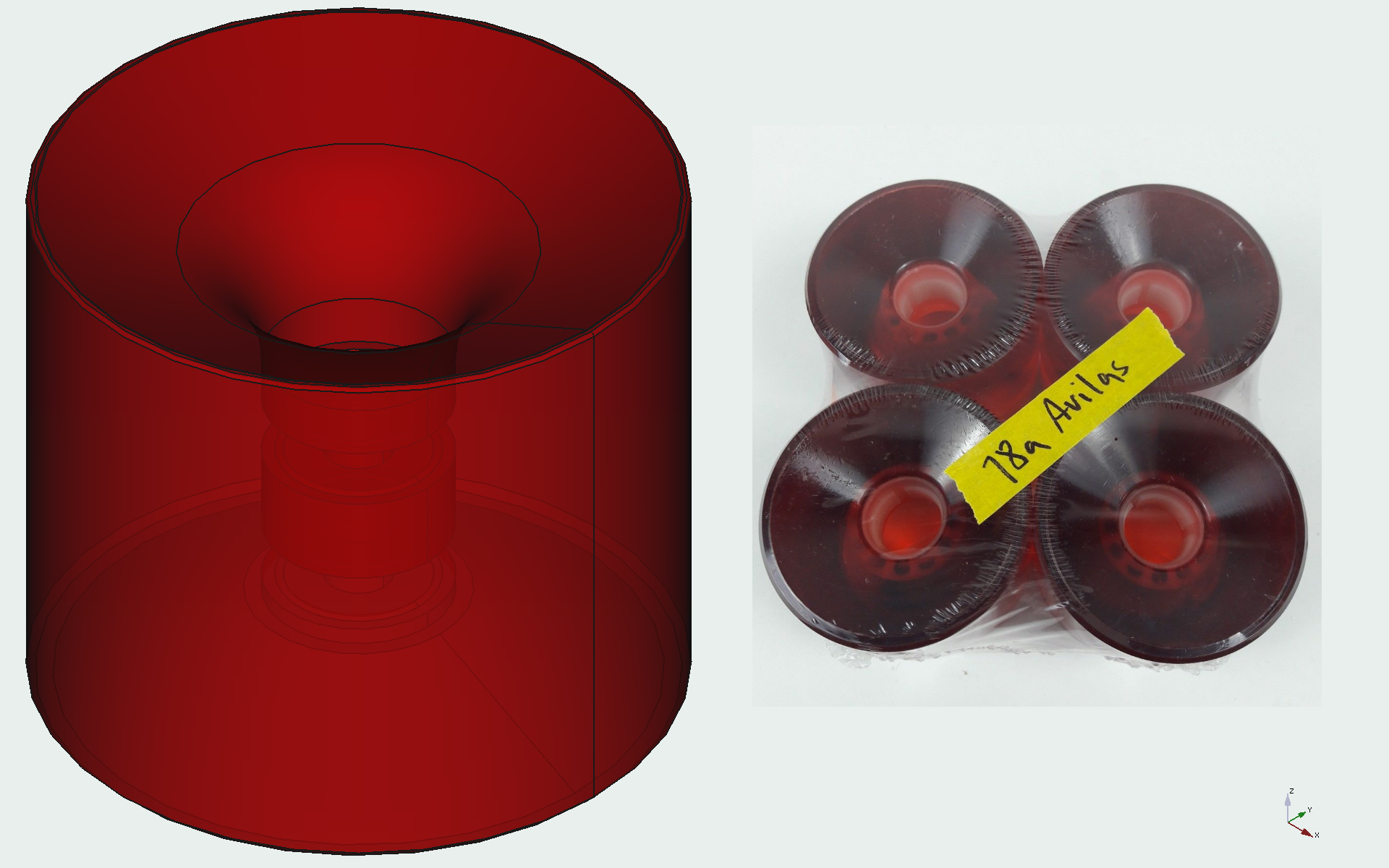

1 longboard wheel
The longboard wheel that I used to develop the Gugusse around has these specifications:
- Exterior: Cylindrical
- Height: 65mm (could be from 45mm to 65mm)
- Diameter: 75mm (could be from 65mm to 75mm)
- Inner diameter (shaft): 8mm
- Hardness(or should we say softness?): 73a (vendor wrote 73a, a sticker said 78a, which is true? I don't know but the lower the number the better it is)
The string to search on Ebay: 75mm Seismic 3DM Avila Wheels Clear Red 73a

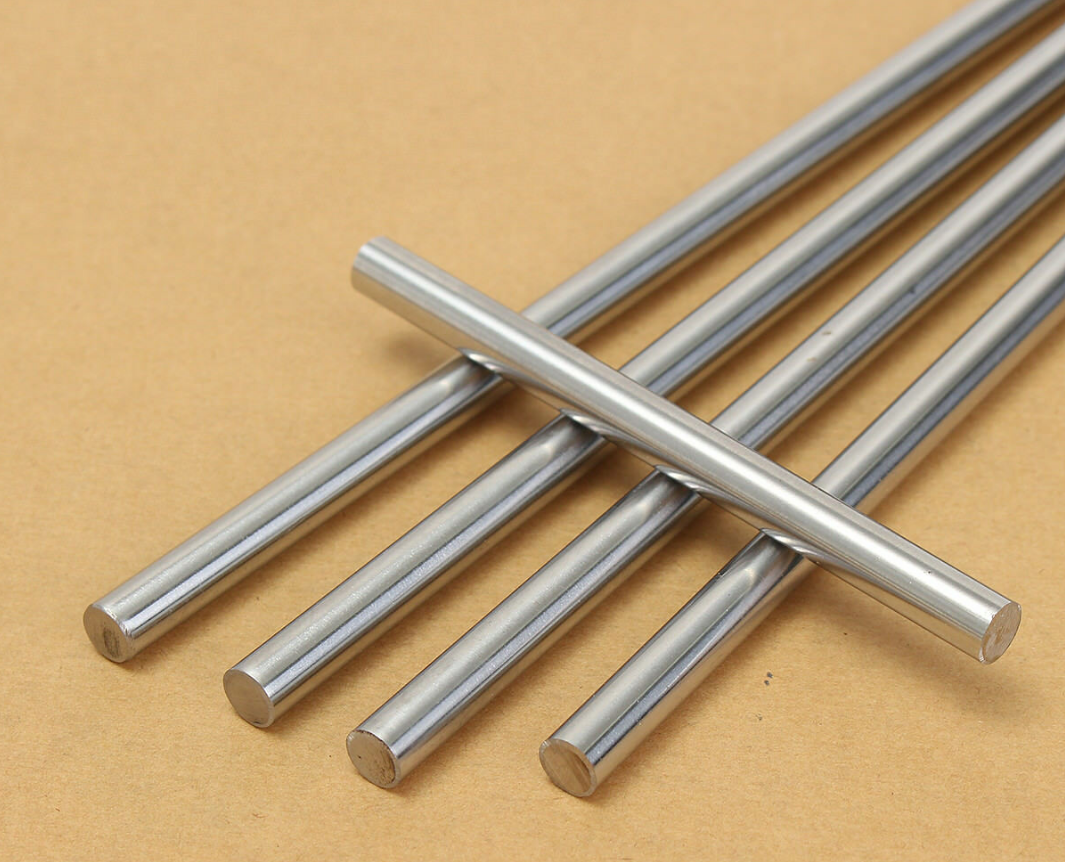

- 1 x rod 4mm (0.157 inch) diameter, 15cm length (6 inches), hardened steel preferably.
- 12 x rods 8mm (0.315 inch) diameter, 15cm length (6 inches), any metal would do.
- 1 x rod 8mm (0.315 inch) diameter, 20cm length (8 inches), any metal would do. (if you have problems finding a 20cm, a 15cm would still do, it will just be a bit difficult to remove when the time comes to change film format, but still workable)

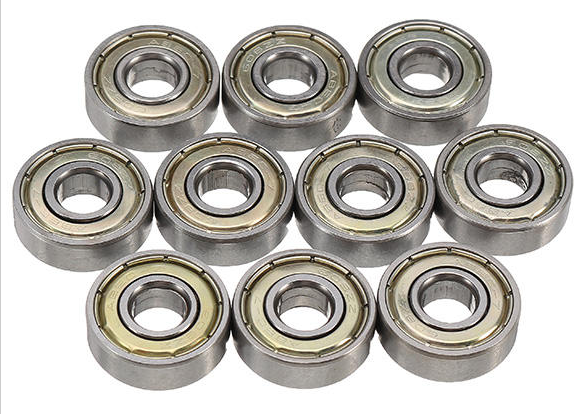

For 1 film width: (to choose between 35mm, 28mm, 16mm, 9.5mm or 8mm): 24 X 608ZZ ball bearings, 2 more if your longboard wheel needs them:
for each supplemental film width: add 16 more!

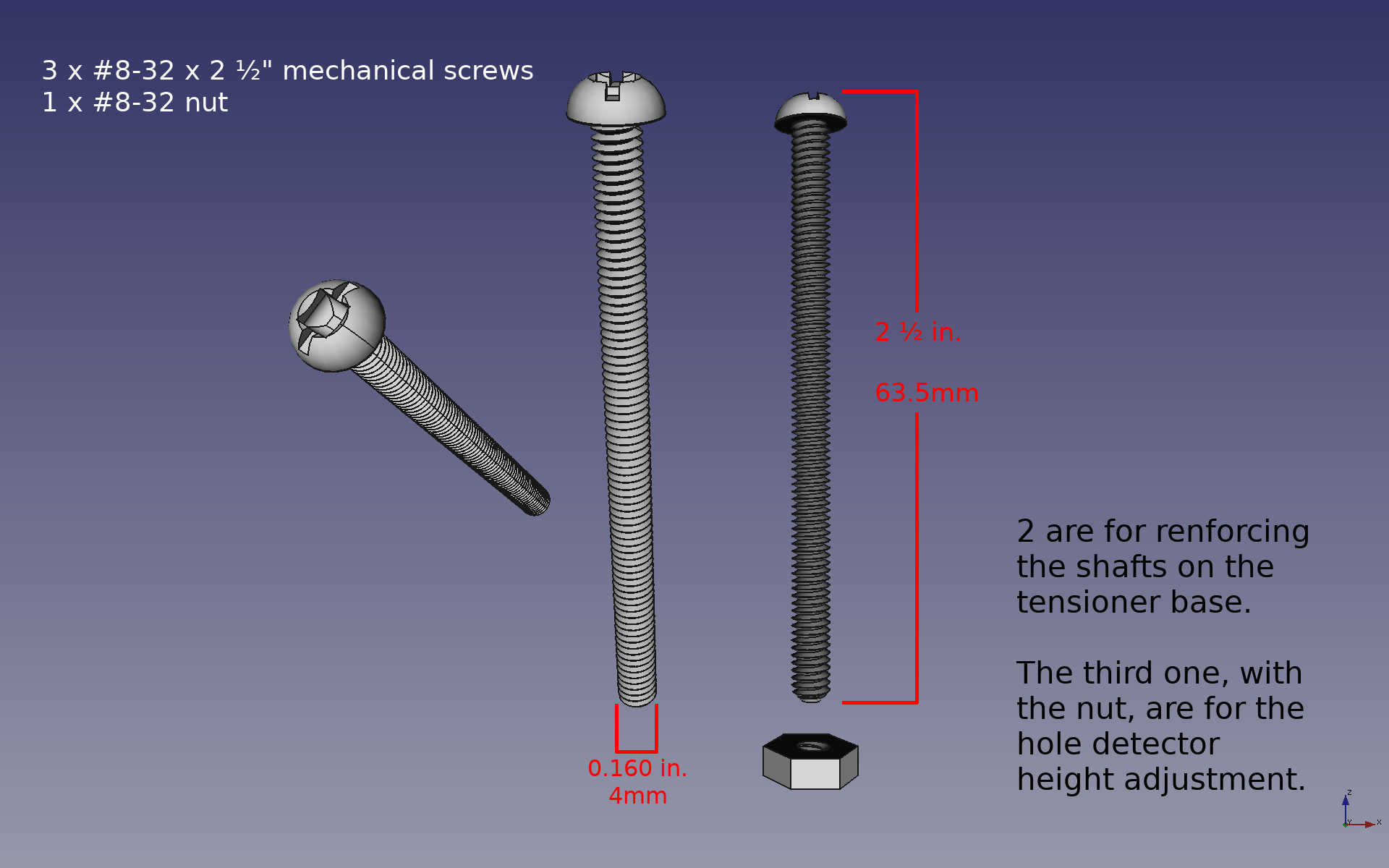

- 3 x #8-32 2½”
- 1 x #8-32 nut
A lot of #6-32
- 4 x 455-2267-ND (4 pins plug housing) Available on Digikey.com
- 18 x 455-3241-ND (pre-crimped wires for plug housing) Available on Digikey.com

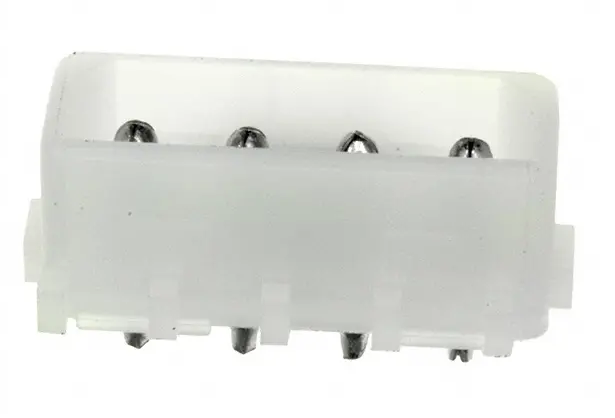

- 1 x A1212-ND (Male 4 pins old computer peripheral connector) Available on digikey.com
- 1 cut of 3 sections of 3 leds each (for the lightpipe lightsource)

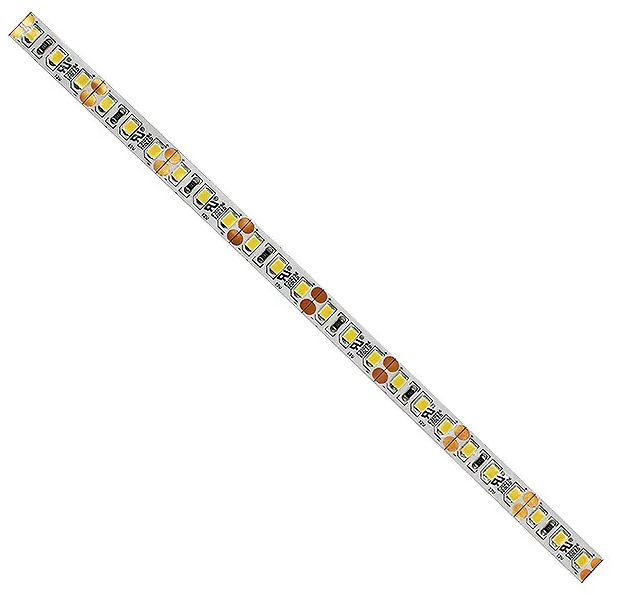

- 6 cuts of 2 section of 3 leds each (order 6 x 1647-1030-1-ND from Digikey.com, it will come as one strip which you'll be able to cut accordingly)

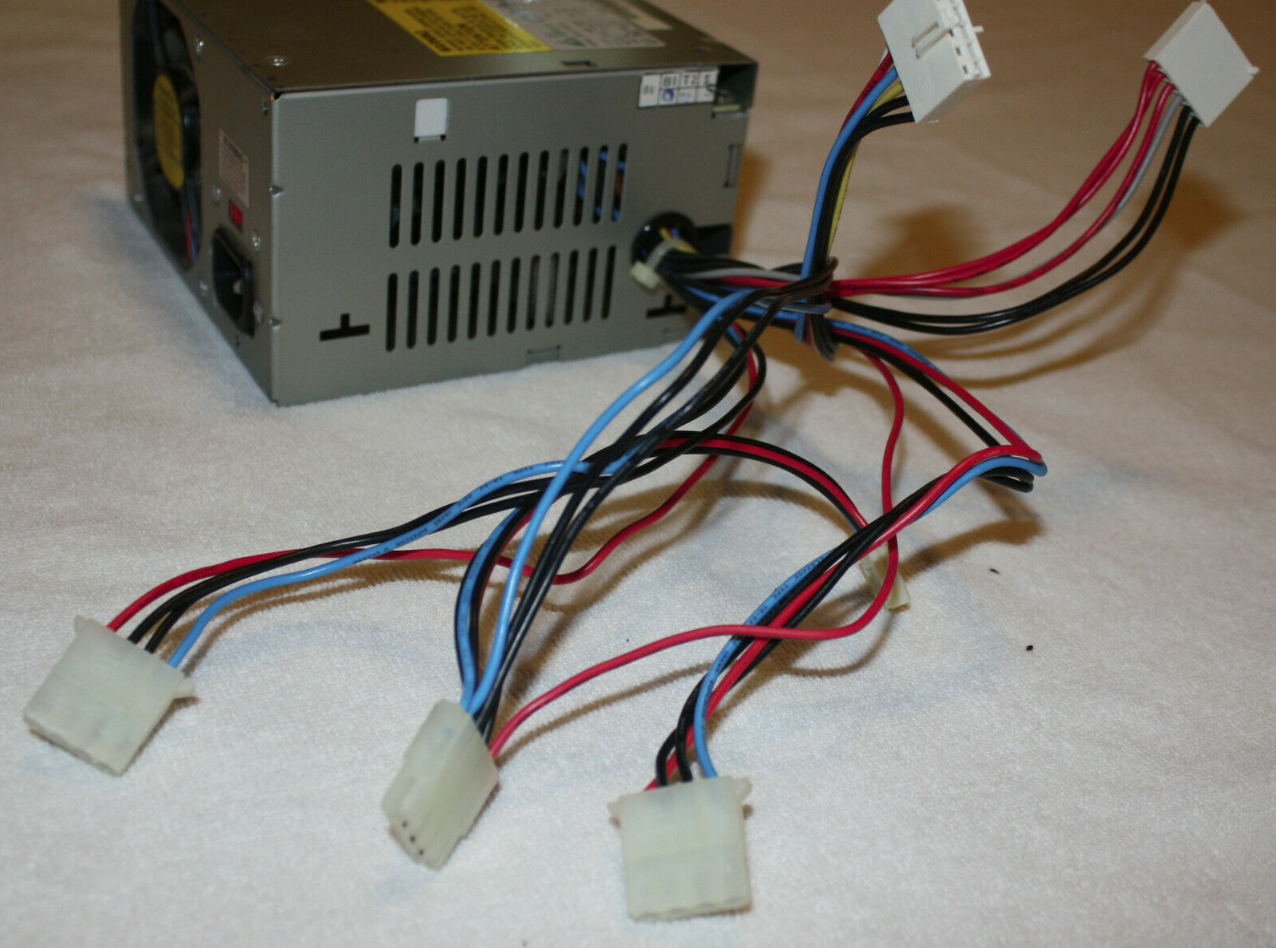

- 1 x Old computer power supply, it has to have at least 2 connectors (Female 4 pins to fit the above A1212-ND connector above) Available in someone's attic near you.

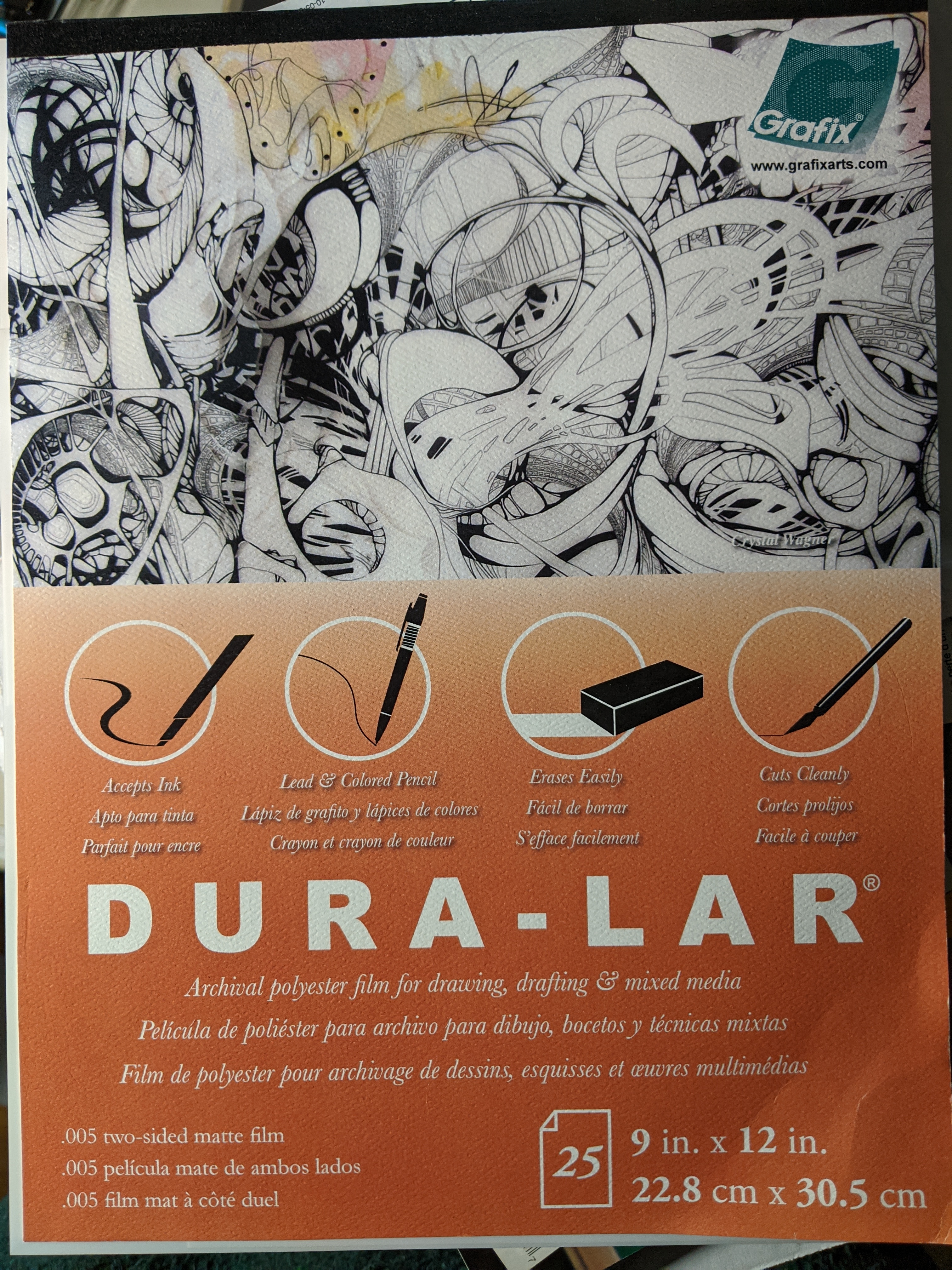

- 1 x pad of matte archival polyester film (artists' supplies stores)

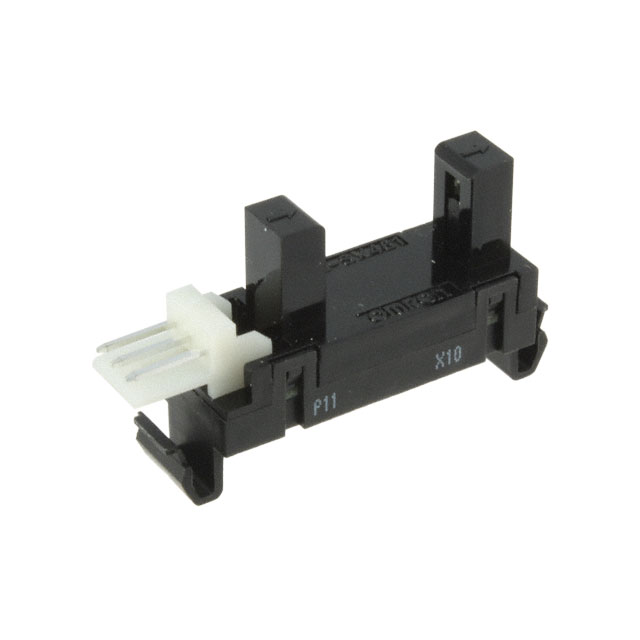

- 2 x optical sensor (new for Compact), Digikey part # Z3028-ND
